Aardwolf  |  SKU: 178626515809

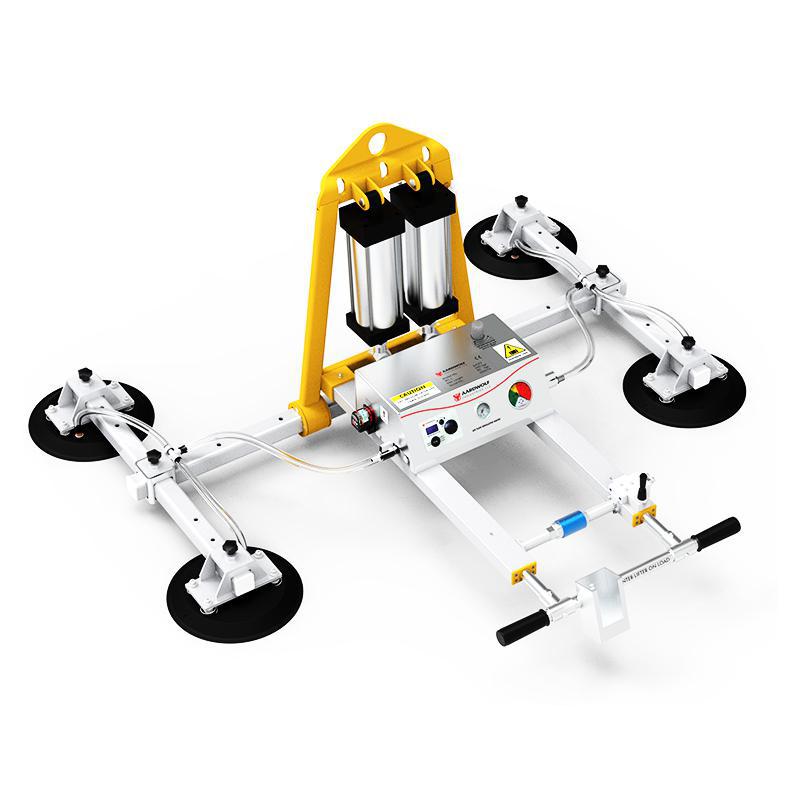

Aardwolf Vacuum Lifter

Score 4.8
Price $6,044.40
Description

General

Pneumatically powered, the Vacuum Glass Lifter is able to lift glass panels, even panels with a rough surface with a weight of up to 500kg. It features a rugged construction with the added ability to lift and tilt the panel materials.

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90°.
  • A stainless steel vacuum tank ensures safety in the event of an unexpected power outage.
  • Automatic vacuum pumping if vacuum loss occurs.
  • Acoustic and visual alarm system.
  • Attach/release material with an ON/OFF slide valve.

Specifications


Metric
Imperial
Number of pad 4  -
Pad diameter Seal to seal: 280 mm 11"
Working load limit Vertical: 200 kg
Horizontal: 400 kg		 441 lb
882 lb
Net weight 79 kg 174 lb
Packaging dimensions L.1480xW.380xH.960 mm 58.2"x15"x37.8"
  • Battery information for the alarm system
Power supply 3.7V Lipo battery
Battery capacity 2000 mAh x 1
Standby time 720 hours
Charging cycle 1000 times
Charging time 2 hours
Non-stop working time 7 hours
6-month warranty -
  • Compressed air requirement
Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)


General

Pneumatically powered, the Vacuum Glass Lifter can lift glass panels, even panels with a rough surface, weighing up to 400kg. It features a rugged construction that can lift and tilt the panel materials.

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90°.
  • Vacuum tank ensures safety in the event of an unexpected power outage.
  • Automatic vacuum pumping if vacuum loss occurs.
  • Acoustic and visual alarm system.
  • Attach/release material with an ON/OFF slide valve.

Specifications


Metric
Imperial
Number of pad 4  -
Pad diameter Seal to seal: 300 mm 11.8"
Working load limit Vertical: 200 kg
Horizontal: 400 kg		 441 lb
882 lb
Net weight 82 kg 181 lb
Gross weight 140 kg 309 lb
Packaging dimensions L.2580xW.430xH.960 mm 101.6"x16.9"x37.8"
  • Battery information for the lifter
Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuous operation time with mode-saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuous operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours
  • Battery charger
Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram
  • Compressed air requirement
Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)





General

This vacuum lifter is suitable for lifting porcelain and glass sheets in large sizes. Features rugged construction with the added ability to lift and tilt the slab materials.

Features

  • Pneumatic vertical-horizontal tilting from 0 to 90°.
  • Automatic vacuum pumping if vacuum loss occurs.
  • Acoustic and visual alarm system.
  • Attach/release material with an ON/OFF slide valve.

Specifications


Metric
Imperial
Number of pads 8 -
Pad diameter seal to seal:300 mm 11.8"
Working load limit Vertical: 400 kg
Horizontal: 800 kg		 882 lb
1764 lb
Net weight 108 kg 238 lb
Gross weight 135 kg 298 lb
Packaging dimensions L.2050xW.430xH.960 mm 80.7"x17"x37.8"
  • Battery information for the device
Code battery GBA 12V 2.0Ah Bosch
Type battery Lithium-ION
Voltage 12V
Current 2.0Ah
Quantity 1
Continuous operation time with mode-saving pressure 2 hours
Working time with mode saving pressure 6 hours
Continuous operation time with mode audio alarm only 120 hours
Working time with mode audio alarm only 360 hours
  • Battery charger
Code battery GAL 12V-40 Bosch
Input supply voltage 220-240VAC
Output voltage 12V
Output current 4.0Ah
Quantity 1
Full charger time 0.5 hour
Weight 460 gram
  • Compressed air requirement
Air consumption 180 liters/minute
Supply air pressure 5 bars (72 psi)
